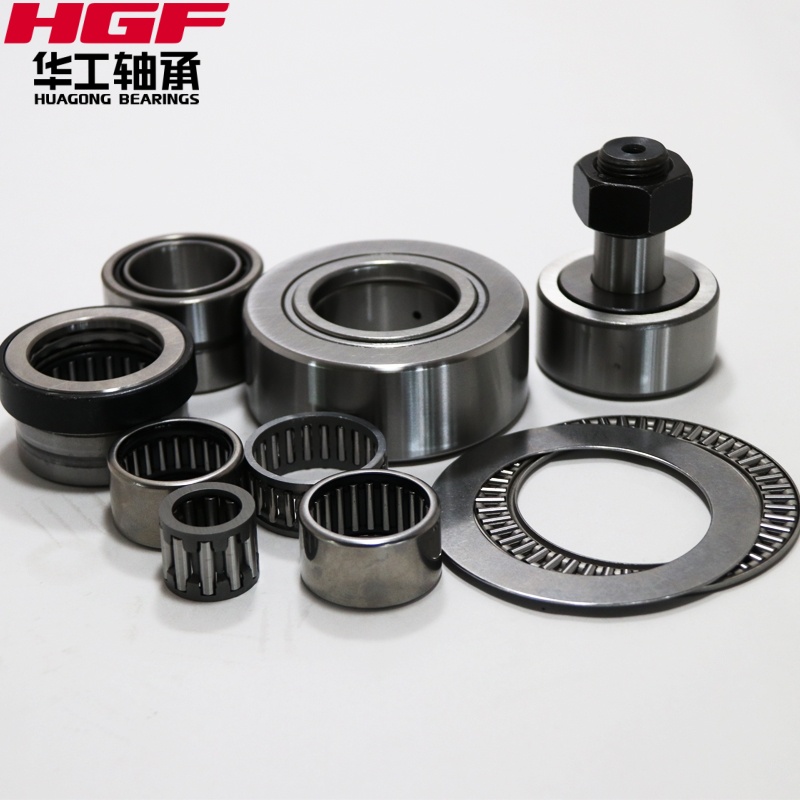

Needle roller bearing series

Type: NA K HK NK NKI CK NX RSTO STO AXK HF LR

Advantages:

Compact & High Capacity: Provide very high radial load capacity where radial space is extremely limited.

Economical: Some types (e.g., needle roller and cage assemblies) can run directly on hardened shafts and in housings, saving space and cost.

Applications: Widely used in transmissions, motorcycle connecting rods, automotive steering systems, and other compact spaces.

Needle roller bearings are equipped with thin, long rollers (the roller length is 3 to 10 times the diameter, and the diameter is generally no more than 5 mm), resulting in a compact radial structure. With the same inner diameter and load capacity as other types of bearings, they have the smallest outer diameter, making them particularly suitable for support structures where radial installation dimensions are limited. Depending on the application, the machining accuracy and surface quality of needle roller bearings should be combined with the bearing rings and the intended use. Needle roller bearings are bearing units composed of radial needle roller bearings and thrust bearing components.

Contact Now E-Mail Telephone WhatsApp

Product Details

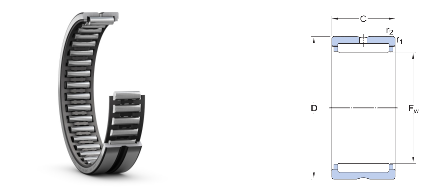

RNA 4800 series	Fw mm	D mm	C mm	≈ KGS
RNA 4800 series	Fw mm	D mm	C mm	≈ KGS
RNA 4822	120	140	30	0.6700
RNA 4824	130	150	30	0.7300
RNA 4826	145	165	35	0.9900
RNA 4828	155	175	35	1.0500
RNA 4830	165	190	40	1.6000
RNA 4832	175	200	40	1.7000
RNA 4834	185	215	45	2.5500
RNA 4836	195	225	45	2.7000
RNA 4838	210	240	50	3.2000
RNA 4840	220	250	50	3.3500
RNA 4844	240	270	50	3.6000
RNA 4848	265	300	60	5.4000
RNA 4852	285	320	60	5.8000
RNA 4856	305	350	69	9.3000
RNA 4860	330	380	80	12.5000
RNA 4864	350	400	80	13.4000
RNA 4868	370	420	80	14.6000
RNA 4872	390	440	80	14.8000
RNA 4876	415	480	100	30.0000

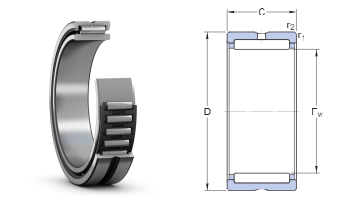

RNA 4900 series		Fw mm	D mm	C mm	≈ KGS
RNA 4900 series		Fw mm	D mm	C mm	≈ KGS
RNA 4900	RNA 4900 2RS	14	22	13	0.0160
RNA 4901	RNA 4901 2RS	16	24	13	0.0200
RNA 4902	RNA 4902 2RS	20	28	13	0.0200
RNA 4903	RNA 4903 2RS	22	30	13	0.0220
RNA 4904	RNA 4904 2RS	25	37	17	0.0500
RNA 4905	RNA 4905 2RS	30	42	17	0.0600
RNA 4906	RNA 4906 2RS	35	47	17	0.0700
RNA 4907	RNA 4907 2RS	42	55	20	0.1100
RNA 4908	RNA 4908 2RS	48	62	22	0.1400
RNA 4909	RNA 4909 2RS	52	68	22	0.1500
RNA 4910	RNA 4910 2RS	58	72	22	0.1600
RNA 4911		63	80	25	0.2600
RNA 4912		68	85	25	0.2800
RNA 4913		72	90	25	0.3100
RNA 4914		80	100	30	0.4600
RNA 4915		85	105	30	0.4900
RNA 4916		90	110	30	0.5200
RNA 4917		100	120	35	0.6600
RNA 4918		105	125	35	0.7500
RNA 4919		110	130	35	0.7200
RNA 4920		115	140	40	1.1500
RNA 4922		125	150	40	1.2400
RNA 4924		135	165	45	1.8000
RNA 4926		150	180	50	2.2000
RNA 4928		160	190	50	2.3500
RNA 4930		170	210	60	4.0900
RNA 4932		180	220	60	4.3100
RNA 4934		190	230	60	4.5300
RNA 4936		205	250	69	6.2500
RNA 4938		215	260	69	6.5000
RNA 4940		225	280	80	10.4000
RNA 4944		245	300	80	11.2000
RNA 4948		265	320	80	12.0000
RNA492		15	28	13	0.0200
RNA493		5	11	10	0.0050
RNA494		6	12	10	0.0163
RNA495		7	13	10	0.0059
RNA496		8	15	10	0.0070
RNA497		9	17	10	0.0093
RNA498		10	19	11	0.0126
RNA499		12	20	11	0.0136
RNA 49/22		28	39	17	0.0500
RNA 49/28		32	45	17	0.0700
RNA 49/32		40	52	20	0.0900
RNA 49/38		45	58	20	0.1200
RNA 49/42		50	65	22	0.1740
RNA 49/48		55	70	22	0.2000
RNA 49/52		60	75	22	0.2050
RNA 49/58		65	82	25	0.2750
RNA 49/62		70	88	25	0.3200
RNA 49/68		75	95	30	0.4700

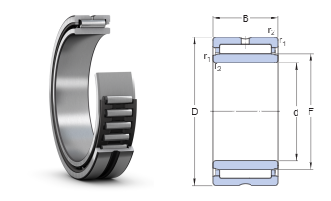

NA 6900 series	d mm	D mm	C mm	≈ KGS
NA 6900 series	d mm	D mm	C mm	≈ KGS
NA6901	12	24	22	0.0460
NA6902	15	28	23	0.0640
NA6903	17	30	23	0.0690
NA6904	20	37	30	0.1410
NA6905	25	42	30	0.1620
NA6906	30	47	30	0.1850
NA6907	35	55	36	0.3100
NA6908	40	62	40	0.4260
NA6909	45	68	40	0.4370
NA6910	50	72	40	0.5290
NA6911	55	80	45	0.7260
NA6912	60	85	45	0.7580
NA6913	65	90	45	0.7790
NA6914	70	100	54	1.3400
NA6915	75	105	54	1.4500
NA6916	80	110	54	1.5300
NA6917	85	120	63	2.2500
NA6918	90	125	63	2.4400
NA6919	95	130	63	2.6300
NA6920	115	140	71	4.0000
NA69/22	22	31	39	0.1500
NA69/28	28	31	45	0.1800
NA69/32	32	52	36	0.2800

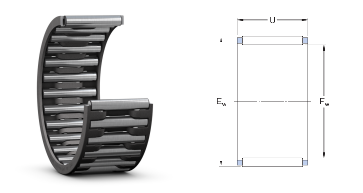

K series	Fw mm	Ew mm	U mm	≈ KGS
K series	Fw mm	Ew mm	U mm	≈ KGS
K3X5X7TN	3	5	7	0.0003
K3X5X9TN	3	5	9	0.0004
K3X6X7TN	3	6	7	0.0004
K4X7X7TN	4	7	7	0.0005
K4X7X10TN	4	7	10	0.0007
K5X8X8TN	5	8	8	0.0007
K5X8X10TN	5	8	10	0.0009
K6X9X8TN	6	9	8	0.0008
K6X9X10TN	6	9	10	0.0011
K6X10X13TN	6	10	13	0.0019
K7X9X7TN	7	9	7	0.0006
K7X10X8	7	10	8	0.0017
K8X11X8	8	11	8	0.0018
K8X11X10	8	11	10	0.0020
K8X11X13	8	11	13	0.0032
K8X12X10	8	12	10	0.0035
K9X12X10	9	12	10	0.0029
K9X12X13	9	12	13	0.0038
K10X13X10	10	13	10	0.0032
K10X13X13	10	13	13	0.0041
K10X13X16	10	13	16	0.0051
K10X14X10	10	14	10	0.0041
K10X16X12	10	16	12	0.0081
K12X15X10	12	15	10	0.0035
K12X15X13	12	15	13	0.0045
K12X16X13	12	16	13	0.0063
K12X17X13	12	17	13	0.0081
K12X18X12	12	18	12	0.0093
K14X18X10	14	18	10	0.0040
K14X18X13	14	18	13	0.0065
K14X18X15	14	18	15	0.0083
K14X18X17	14	18	17	0.0080
K14X20X12	14	20	12	0.0085
K15X18X17	15	18	17	0.0072
K15X19X10	15	19	10	0.0050
K15X19X13	15	19	13	0.0070
K15X19X17	15	19	17	0.0095
K15X20X13	15	20	13	0.0070
K15X21X15	15	21	15	0.0110
K15X21X21	15	21	21	0.0170
K16X20X10	16	20	10	0.0055
K16X20X13	16	20	13	0.0075
K16X20X17	16	20	17	0.0100
K16X22X12	16	22	12	0.0100
K16X22X16	16	22	16	0.0120
K16X22X20	16	22	20	0.0170
K16X24X20	16	24	20	0.0220
K17X21X10	17	21	10	0.0055
K17X21X13	17	21	13	0.0065
K17X21X17	17	21	17	0.0095
K18X22X10	18	22	10	0.0060
K18X22X13	18	22	13	0.0080
K18X22X17	18	22	17	0.0110
K18X24X12	18	24	12	0.0120
K18X24X13	18	24	13	0.0130
K18X25X22	18	25	22	0.0230
K19X23X13	19	23	13	0.0080
K19X23X17	19	23	17	0.0110
K20X24X10	20	24	10	0.0065
K20X24X13	20	24	13	0.0090
K20X24X17	20	24	17	0.0120
K20X26X12	20	26	12	0.0110
K20X26X13	20	26	13	0.0120
K20X26X17	20	26	17	0.0160
K20X26X20	20	26	20	0.0190
K20X28X16	20	28	16	0.0200
K20X28X20	20	28	20	0.0270
K20X28X25	20	28	25	0.0320
K20X30X30	20	30	30	0.0490
K21X25X13	21	25	13	0.0090
K22X26X10	22	26	10	0.0075
K22X26X13	22	26	13	0.0095
K22X26X17	22	26	17	0.0120
K22X28X17	22	28	17	0.0180
K22X29X16	22	29	16	0.0160
K22X30X15	22	30	15	0.0260
K22X32X24	22	32	24	0.0430
K23X35X16	23	35	16	0.0450
K24X28X10	24	28	10	0.0085
K24X28X13	24	28	13	0.0100
K24X28X17	24	28	17	0.0130
K24X30X17	24	30	17	0.0190
K24X30X31ZW	24	30	31	0.0320
K25X29X10	25	29	10	0.0085
K25X29X13	25	29	13	0.0110
K25X29X17	25	29	17	0.0140
K25X30X17	25	30	17	0.0160
K25X30X20	25	30	20	0.0180
K25X30X26ZW	25	30	26	0.0190
K25X31X17	25	31	17	0.0190
K25X31X21	25	31	21	0.0200
K25X32X16	25	32	16	0.0210
K25X33X20	25	33	20	0.0330
K25X33X24	25	33	24	0.0390
K25X35X30	25	35	30	0.0650
K26X30X13	26	30	13	0.0110
K26X30X17	26	30	17	0.0150
K26X30X22ZW	26	30	22	0.0120
K28X33X13	28	33	13	0.0130
K28X33X17	28	33	17	0.0170
K28X34X17	28	34	17	0.0240
K28X35X16	28	35	16	0.0240
K28X35X18	28	35	18	0.0270
K28X40X25	28	40	25	0.0700
K30X34X13	30	34	13	0.0140
K30X35X13	30	35	13	0.0140
K30X35X17	30	35	17	0.0190
K30X35X27	30	35	27	0.0300
K30X37X16	30	37	16	0.0270
K30X37X18	30	37	18	0.0300
K30X40X18	30	40	18	0.0480
K30X40X30	30	40	30	0.0730
K32X37X13	32	37	13	0.0180
K32X37X17	32	37	17	0.0190
K32X37X27	32	37	27	0.0300
K32X38X20	32	38	20	0.0300
K32X39X16	32	39	16	0.0370
K32X39X18	32	39	18	0.0310
K32X40X25	32	40	25	0.0490
K32X40X42ZW	32	40	42	0.0970
K32X46X32	32	46	32	0.1190
K35X40X13	35	40	13	0.0190
K35X40X17	35	40	17	0.0210
K35X40X25	35	40	25	0.0310
K35X40X27	35	40	27	0.0410
K35X42X16	35	42	16	0.0340
K35X42X18	35	42	18	0.0340
K35X42X20	35	42	20	0.0370
K35X42X30	35	42	30	0.0670
K35X45X20	35	45	20	0.0560
K35X45X30	35	45	30	0.0800
K37X42X17	37	42	17	0.0220
K38X43X17	38	43	17	0.0290
K38X43X27	38	43	27	0.0430
K38X46X20	38	46	20	0.0470
K38X46X32	38	46	32	0.0760
K39X44X26ZW	39	44	26	0.0450
K40X45X13	40	45	13	0.0220
K40X45X17	40	45	17	0.0310
K40X45X27	40	45	27	0.0460
K40X47X18	40	47	18	0.0390
K40X47X20	40	47	20	0.0420
K40X48X20	40	48	20	0.0490
K42X47X13	42	47	13	0.0180
K42X47X17	42	47	17	0.0320
K42X47X30ZW	42	47	30	0.0540
K42X50X20	42	50	20	0.0530
K43X48X17	43	48	17	0.0300
K43X48X27	43	48	27	0.0500
K45X50X17	45	50	17	0.0340
K45X50X27	45	50	27	0.0510
K45X52X18	45	52	18	0.0420
K45X53X20	45	53	20	0.0550
K45X53X21	45	53	21	0.0600
K45X53X28	45	53	28	0.0810
K45X59X18	45	59	18	0.1050
K45X59X32	45	59	32	0.1480
K47X52X17	47	52	17	0.0350
K47X52X27	47	52	27	0.0510
K50X55X13.5	50	55	13.5	0.0300
K50X55X17	50	55	17	0.0350
K50X55X20	50	55	20	0.0430
K50X55X30	50	55	30	0.0650
K50X57X18	50	57	18	0.0470
K50X58X20	50	58	20	0.0750
K50X58X25	50	58	25	0.0900
K52X57X12	52	57	12	0.0240
K55X60X20	55	60	20	0.0400
K55X60X27	55	60	27	0.0600
K55X60X30	55	60	30	0.0710
K55X62X18	55	62	18	0.0520
K55X63X20	55	63	20	0.0670
K55X63X25	55	63	25	0.0800
K55X63X32	55	63	32	0.1020
K58X65X18	58	65	18	0.0520
K58X65X36ZW	58	65	36	0.1270
K60X65X20	60	65	20	0.0520
K60X65X30	60	65	30	0.0770
K60X66X33ZW	60	66	33	0.1040
K60X66X40ZW	60	66	40	0.1160
K60X68X20	60	68	20	0.0710
K60X68X23	60	68	23	0.0940
K60X68X25	60	68	25	0.0890
K60X68X30ZW	60	68	30	0.1290
K60X75X42	60	75	42	0.2400
K62X70X40ZW	62	70	40	0.1740
K64X70X16	64	70	16	0.0530
K65X70X20	65	70	20	0.0560
K65X70X30	65	70	30	0.0830
K65X73X23	65	73	23	0.1080
K65X73X30	65	73	30	0.1410
K68X74X20	68	74	20	0.0710
K68X74X30	68	74	30	0.1000
K68X74X35ZW	68	74	35	0.1200
K70X76X20	70	76	20	0.0710
K70X76X30	70	76	30	0.1100
K70X78X30	70	78	30	0.1480
K72X80X20	72	80	20	0.0980
K73X79X20	73	79	20	0.0750
K75X81X20	75	81	20	0.0790
K75X81X30	75	81	30	0.1140
K75X83X23	75	83	23	0.1240
K75X83X30	75	83	30	0.1470
K75X83X35ZW	75	83	35	0.1820
K75X83X40ZW	75	83	40	0.2110
K80X86X20	80	86	20	0.0600
K80X88X30	80	88	30	0.1380
K80X88X40ZW	80	88	40	0.2270
K80X88X46ZW	80	88	46	0.2600
K85X92X20	85	92	20	0.1020
K90X97X20	90	97	20	0.1090
K90X98X27	90	98	27	0.1500
K90X98X30	90	98	30	0.1720
K95X103X30	95	103	30	0.1650
K95X103X40ZW	95	103	40	0.2660
K100X107X21	100	107	21	0.1200
K100X108X27	100	108	27	0.1850
K100X108X30	100	108	30	0.1800
K105X112X21	105	112	21	0.1290
K110X117X24	110	117	24	0.1720
K110X118X30	110	118	30	0.2170
K115X123X27	115	123	27	0.2000
K120X127X24	120	127	24	0.1650
K125X133X35	125	133	35	0.2750
K130X137X24	130	137	24	0.1700
K135X143X35	135	143	35	0.3000
K145X153X26	145	153	26	0.2620
K150X160X46	150	160	46	0.5700
K155X163X26	155	163	26	0.2650
K160X170X46	160	170	46	0.5500
K165X173X26	165	173	26	0.3200
K175X183X32	175	183	32	0.4000
K185X195X37	185	195	37	0.6070
K195X205X37	195	205	37	0.6200
K210X220X42	210	220	42	0.7400
K220X230X42	220	230	42	0.7900
K240X250X42	240	250	42	0.8500
K265X280X50	265	280	50	1.8100

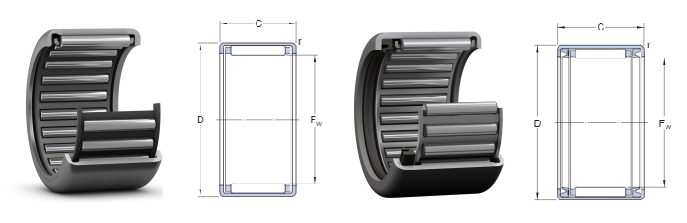

HK series		Fw mm	Ew mm	U mm	≈ KGS
HK series		Fw mm	Ew mm	U mm	≈ KGS
HK0306		3	6.5	6	0.0010
HK0408		4	8	8	0.0020
HK0409		4	8	9	0.0016
HK0509		5	9	9	0.0020
HK0608		6	10	8	0.0021
HK0609		6	10	9	0.0025
HK0709		7	11	9	0.0026
HK0808		8	12	8	0.0027
HK0810		8	12	10	0.0030
HK0812 2RS		8	12	12	0.0033
HK0908		9	13	8	0.0030
HK0910		9	13	10	0.0040
HK0912		9	13	12	0.0046
HK1010		10	14	10	0.0041
HK1012		10	14	12	0.0048
HK1014 2RS		10	14	14	0.0046
HK1015		10	14	15	0.0060
HK1216 2RS		12	18	16	0.0110
HK1210	HK 1210 2RS	12	16	10	0.0046
HK1212		12	18	12	0.0090
HK1214	HK1214 2RS	12	18	14	0.0100
HK1312		13	19	12	0.0100
HK1412		14	20	12	0.0105
HK1416 2RS		14	20	16	0.0130
HK1512		15	21	12	0.0110
HK1516	HK1516 2RS	15	21	16	0.0150
HK1520 2RS		15	21	20	0.0180
HK1612		16	22	12	0.0120
HK1616	HK1616 2RS	16	22	16	0.0160
HK1620 2RS		16	22	20	0.0180
HK1712		17	23	12	0.0120
HK1812		18	24	12	0.0130
HK1816	HK1816 2RS	18	24	16	0.0180
HK2010		20	26	10	0.0120
HK2012		20	26	12	0.0140
HK2016	HK2016 2RS	20	26	16	0.0190
HK2020	HK2020 2RS	20	26	20	0.0240
HK2210		22	28	10	0.0130
HK2212		22	28	12	0.0150
HK2216	HK2216 2RS	22	28	16	0.0210
HK2220	HK2220 2RS	22	28	20	0.0260
HK2512		25	32	12	0.0200
HK2516	HK2516 2RS	25	32	16	0.0270
HK2520	HK2520 2RS	25	32	20	0.0330
HK2524 2RS		25	32	24	0.0400
HK2526		25	32	26	0.0440
HK2530 2RS		25	32	30	0.0470
HK2816		28	35	16	0.0290
HK2820	HK2820 2RS	28	35	20	0.0360
HK3012		30	37	12	0.0230
HK3016	HK3016 2RS	30	37	16	0.0310
HK3020	HK3020 2RS	30	37	20	0.0390
HK3024 2RS		30	37	24	0.0440
HK3026		30	37	26	0.0510
HK3224		32	39	24	0.0490
HK3230		32	42	30	0.0920
HK3512		35	42	12	0.0270
HK3516	HK3516 2RS	35	42	16	0.0360
HK3520	HK3520 2RS	35	42	20	0.0440
HK4012		40	47	12	0.0300
HK4014		40	47	14	0.0331
HK4016	HK4016 2RS	40	47	16	0.0390
HK4020	HK4020 2RS	40	47	20	0.0540
HK4512		45	52	12	0.0330
HK4516		45	52	16	0.0460
HK4520	HK4520 2RS	45	52	20	0.0560
HK5020		50	58	20	0.0700
HK5024 2RS		50	58	24	0.0810
HK5025		50	58	25	0.0900
HK5520		55	63	20	0.0740
HK5528		55	63	28	0.1050
HK6012		60	68	12	0.0490
HK6016		60	68	16	0.0624
HK6020		60	68	20	0.0810
HK6024		60	68	24	0.0976
HK6032		60	68	32	0.1360

NK series	Fw mm	D mm	C mm	≈ KGS
NK series	Fw mm	D mm	C mm	≈ KGS
NK 5/12 TN	5	10	10	0.0100
NK 6/10 TN	6	12	10	0.0100
NK 6/12 TN	6	12	12	0.0100
NK 7/10 TN	7	14	10	0.0100
NK 7/12 TN	7	14	12	0.0100
NK 8/12 TN	8	15	12	0.0100
NK 8/16 TN	8	15	16	0.0100
NK 9/12 TN	9	16	12	0.0100
NK 9/16 TN	9	16	16	0.0100
NK 10/12 TN	10	17	12	0.0100
NK 10/16 TN	10	17	16	0.0100
NK 12/12	12	19	12	0.0100
NK 12/16	12	19	16	0.0200
NK13.5/12	13.5	22	12	0.0100
NK 14/16	14	22	16	0.0200
NK 14/20	14	22	20	0.0300
NK 15/16	15	23	16	0.0200
NK 15/20	15	23	20	0.0300
NK 16/16	16	24	16	0.0200
NK 16/20	16	24	20	0.0300
NK 17/16	17	25	16	0.0200
NK 17/20	17	25	20	0.0300
NK 18/16	18	26	16	0.0300
NK 18/20	18	26	20	0.0300
NK 19/16	19	27	16	0.0300
NK 19/20	19	27	20	0.0300
NK 20/16	20	28	16	0.0300
NK 20/20	20	28	20	0.0300
NK 21/16	21	29	16	0.0300
NK 21/20	21	29	20	0.0400
NK 22/16	22	30	16	0.0300
NK 22/20	22	30	20	0.0400
NK 24/16	24	32	16	0.0300
NK 24/20	24	32	20	0.0400
NK 25/16	25	33	16	0.0300
NK 25/20	25	33	20	0.0400
NK 26/16	26	34	16	0.0300
NK 26/20	26	34	20	0.0400
NK 28/20	28	37	20	0.0500
NK 28/30	28	37	30	0.0800
NK 29/20	29	38	20	0.0500
NK 29/30	29	38	30	0.0800
NK 30/20	30	40	20	0.0700
NK 30/30	30	40	30	0.1000
NK 32/20	32	42	20	0.0700
NK 32/30	32	42	30	0.1000
NK 35/20	35	45	20	0.0700
NK 35/30	35	45	30	0.1100
NK 37/20	37	47	20	0.0800
NK 37/30	37	47	30	0.1100
NK 38/20	38	48	20	0.0800
NK 38/30	38	48	30	0.1200
NK 40/20	40	50	20	0.0800
NK 40/30	40	50	30	0.1300
NK 42/20	42	52	20	0.0900
NK 42/30	42	52	30	0.1300
NK 43/20	43	53	20	0.0900
NK 43/30	43	53	30	0.1300
NK 45/20	43	55	20	0.0900
NK 45/30	43	55	30	0.1400
NK 47/20	47	57	20	0.1000
NK 47/30	47	57	30	0.1400
NK 50/25	50	62	25	0.1600
NK 50/35	50	62	35	0.2200
NK 55/25	55	68	25	0.1800
NK 55/35	55	68	35	0.2500
NK 60/25	60	72	25	0.1900
NK 60/35	60	72	35	0.2600
NK 65/25	65	78	25	0.2200
NK 65/35	65	78	35	0.3100
NK 68/25	68	82	25	0.2400
NK 68/35	68	82	35	0.3400
NK 70/25	70	85	25	0.2600
NK 70/35	70	85	35	0.3700
NK 73/25	73	90	25	0.3000
NK 73/35	73	90	35	0.4300
NK 75/25	75	92	25	0.3200
NK 75/35	75	92	35	0.4500
NK 80/25	80	95	25	0.3000
NK 80/35	80	95	35	0.4300
NK 85/25	85	105	25	0.4300
NK 85/35	85	105	35	0.6000
NK 90/25	90	110	25	0.4500
NK 90/35	90	110	35	0.6300
NK 95/26	95	115	26	0.4900
NK 95/36	95	115	36	0.6800
NK 100/26	100	120	26	0.5200
NK 100/36	100	120	36	0.7200
NK 105/26	105	125	26	0.5400
NK 105/36	105	125	36	0.7100
NK 110/30	110	130	30	0.6500
NK 110/40	110	130	40	0.8300
NK 120/40	120	160	40	0.9100
NK 130/40	130	150	40	0.9800

NKI series	Fw mm	D mm	C mm	≈ KGS
NKI series	Fw mm	D mm	C mm	≈ KGS
NKI 5/12 TN	5	15	12	0.0100
NKI 5/16 TN	5	15	16	0.0200
NKI 6/12 TN	6	16	12	0.0100
NKI 6/16 TN	6	16	16	0.0200
NKI 7/12 TN	7	17	12	0.0100
NKI 7/16 TN	7	17	16	0.0200
NKI 9/12	9	19	12	0.0200
NKI 9/16	9	19	16	0.0200
NKI 10/16	10	22	16	0.0300
NKI 10/20	10	22	20	0.0400
NKI 12/16	12	24	16	0.0300
NKI 12/20	12	24	20	0.0400
NKI 15/16	15	27	16	0.0400
NKI 15/20	15	27	20	0.0500
NKI 17/16	17	29	16	0.0400
NKI 17/20	17	29	20	0.0500
NKI 20/16	20	32	16	0.0500
NKI 20/20	20	32	20	0.0600
NKI 22/16	22	34	16	0.0500
NKI 22/20	22	34	20	0.0700
NKI 25/20	25	38	20	0.0800
NKI 25/30	25	38	30	0.1200
NKI 28/20	28	42	20	0.1000
NKI 28/30	28	42	30	0.1500
NKI 30/20	30	45	20	0.1100
NKI 30/30	30	45	30	0.1700
NKI 32/20	32	47	20	0.1200
NKI 32/30	32	47	30	0.1800
NKI 35/20	35	50	20	0.1300
NKI 35/30	35	50	30	0.1900
NKI 38/20	38	53	20	0.1400
NKI 38/30	38	53	30	0.2100
NKI 40/20	40	55	20	0.1400
NKI 40/30	40	55	30	0.2200
NKI 42/20	42	57	20	0.1500
NKI 42/30	42	57	30	0.2200
NKI 45/25	45	62	25	0.2300
NKI 45/35	45	62	35	0.3200
NKI 50/25	50	68	25	0.2700
NKI 50/35	50	68	35	0.3800
NKI 55/25	55	72	25	0.2700
NKI 55/35	55	72	35	0.3800
NKI 60/25	60	82	25	0.3900
NKI 60/35	60	82	35	0.5500
NKI 65/25	65	90	25	0.4700
NKI 65/35	65	90	35	0.6600
NKI 70/25	70	95	25	0.5200
NKI 70/35	70	95	35	0.7400
NKI 75/25	75	105	25	0.6400
NKI 75/35	75	105	35	0.9100
NKI 80/25	80	110	25	0.6800
NKI 80/35	80	110	35	0.9600
NKI 85/26	85	115	26	0.7400
NKI 85/36	85	115	36	1.0500
NKI 90/26	90	120	26	0.7800
NKI 90/36	90	120	36	1.1000
NKI 95/26	95	125	26	0.8200
NKI 95/36	95	125	36	1.1500
NKI 100/30	100	130	30	0.9900
NKI 100/40	100	130	40	1.3500
NKI 110/30	110	130	30	0.6070
NKI 110/40	110	140	40	1.4600
NKI 120/40	120	160	40	1.6480
NKI 130/32	130	170	32	2.1760
NKI 140/32	140	180	32	2.0660
NKI 150/32	150	190	32	2.5000
