Linear bearing series

Type: LM / LME / LMF / LMK

According to shape:

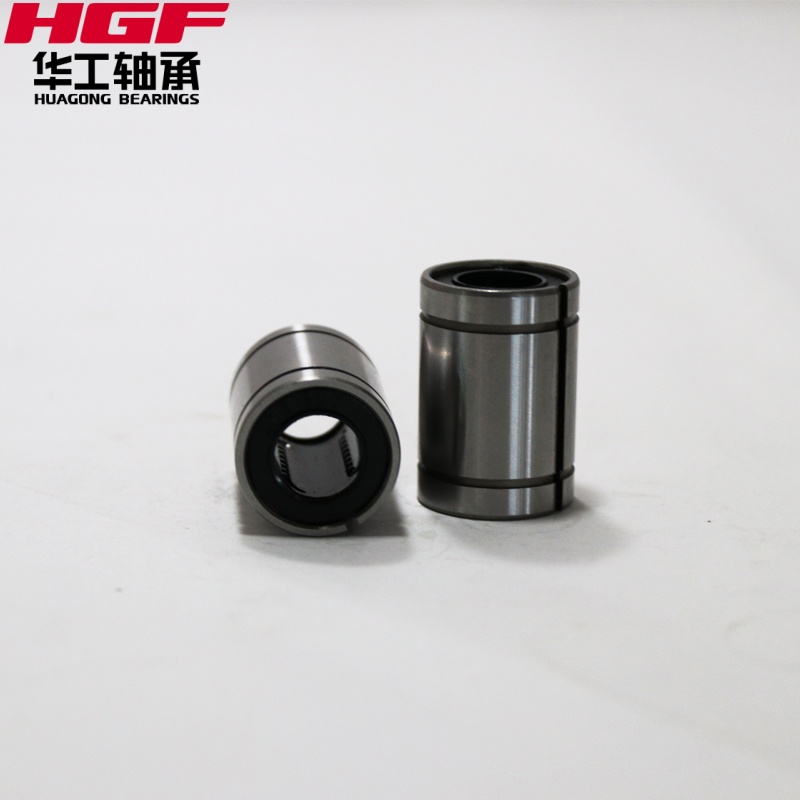

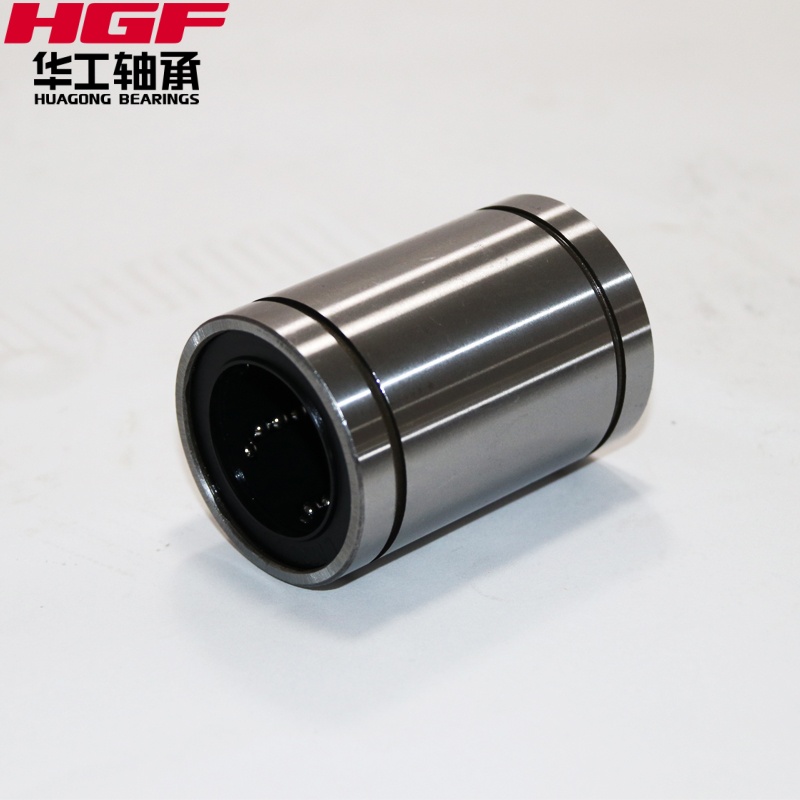

1. Cylindrical type (shaped like a cylinder, generally installed with a snap ring, used in applications with small installation dimensions)

2. Flange type (with a mounting flange at the end or middle, can be installed with screws; flanges are generally divided into round, square, and chamfered types)

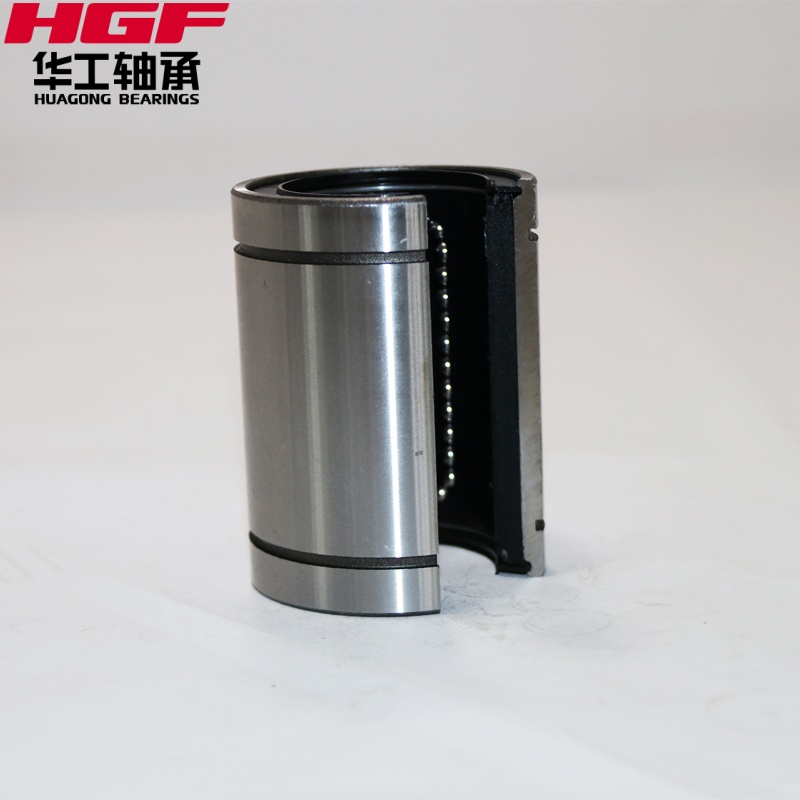

3. Open type (shaped like a cylinder, with an axial slit on the surface, used in applications requiring clearance adjustment; divided into large and small opening types)

According to performance:

1. General type (for applications with general performance requirements)

2. Super type (for applications requiring long life and high load performance)

Linear bearings are the core mechanical components of linear motion systems, mainly used to cooperate with cylindrical shafts to achieve linear motion with unlimited stroke, belonging to the basic type of linear guide mechanism. According to material, they can be divided into two main categories: metal and plastic. According to structure, they are divided into standard type, flange type, open type, etc., among which the LM series (metric) and LME series (imperial) are applicable to different regional standards.

Linear bearings are increasingly widely used in precision equipment or special machinery industries such as electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, instruments, robots, machine tools, CNC machine tools, automobiles, and digital three-dimensional coordinate measuring equipment.

Contact Now E-Mail Telephone WhatsApp

Product Details

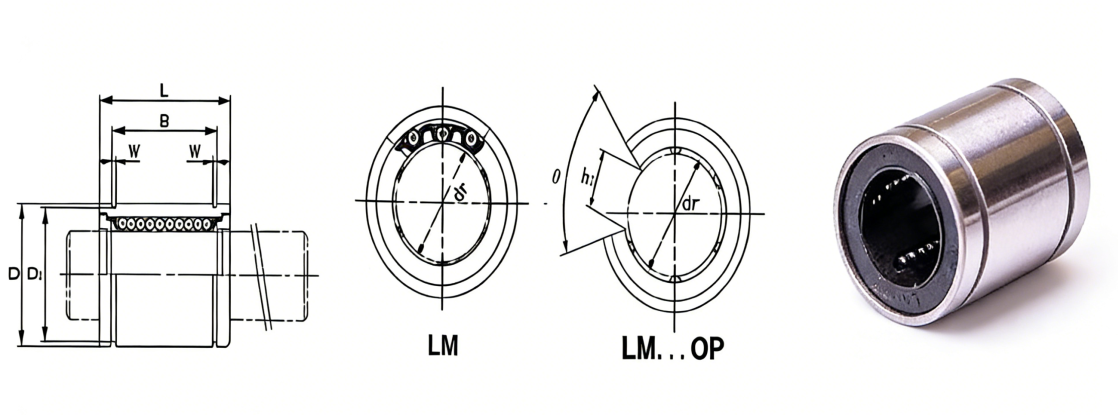

Sealed type	d mm	D mm	L mm	≈ KGS
Sealed type	d mm	D mm	L mm	≈ KGS
LM 3 UU	3	7	10	0.001
LM 4 UU	4	8	12	0.002
LM 5 UU	5	10	15	0.004
LM 6 UU	6	12	19	0.008
LM 8 UU	8	15	24	0.016
LM 10 UU	10	19	29	0.030
LM 12 UU	12	21	30	0.032
LM 13 UU	13	23	32	0.043
LM 16 UU	16	28	37	0.069
LM 20 UU	20	32	42	0.087
LM 25 UU	25	40	59	0.220
LM 30 UU	30	45	64	0.250
LM 35 UU	35	52	70	0.390
LM 40 UU	40	60	80	0.590
LM 50 UU	50	80	100	1.580
LM 60 UU	60	90	110	2.000
LM 80 UU	80	120	140	4.420
LM 100 UU	100	150	175	8.600

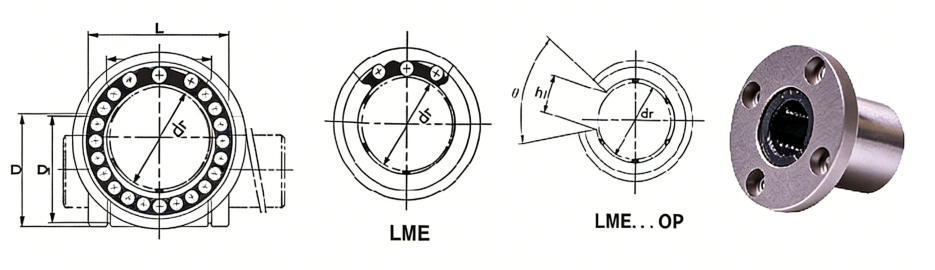

Sealed type	d mm	D mm	L mm	≈ KGS
Sealed type	d mm	D mm	L mm	≈ KGS
LME 5 UU	5	12	22	0.004
LME 8 UU	8	16	25	0.016
LME 12 UU	12	22	32	0.032
LME 16 UU	16	26	36	0.069
LME 20 UU	20	32	45	0.087
LME 25 UU	25	40	58	0.220
LME 30 UU	30	47	68	0.250
LME 40 UU	40	62	80	0.585
LME 50 UU	50	75	100	1.580
LME 60 UU	60	90	125	2.000
LME 80 UU	80	120	165	5.140

Sealed type	d mm	D mm	L mm	≈ KGS
Sealed type	d mm	D mm	L mm	≈ KGS
LMF 6 UU	6	12	19	0.037
LMF 8 UU	8	15	24	0.05
LMF 10 UU	10	19	29	0.072
LMF 12 UU	12	21	30	0.08
LMF 13 UU	13	23	32	0.094
LMF 16 UU	16	28	37	0.16
LMF 20 UU	20	32	42	0.18
LMF 25 UU	25	40	59	0.34
LMF 30 UU	30	45	64	0.68
LMF 35 UU	35	52	70	1.02
LMF 40 UU	40	60	80	1.48
LMF 50 UU	50	80	100	2.2
LMF 60 UU	60	90	110	2.96
LMF 80 UU	80	120	140	6.5

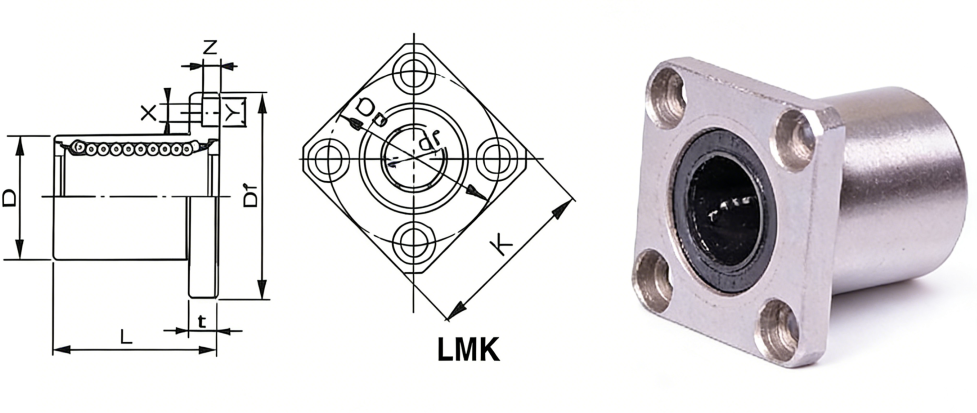

Sealed type	d mm	D mm	L mm	≈ KGS
Sealed type	d mm	D mm	L mm	≈ KGS
LMK 6 UU	6	12	19	0.03
LMK 8 UU	8	15	24	0.041
LMK 10 UU	10	19	29	0.045
LMK 12 UU	12	21	30	0.076
LMK 13 UU	13	23	32	0.088
LMK 16 UU	16	28	37	0.12
LMK 20 UU	20	32	42	0.18
LMK 25 UU	25	40	59	0.34
LMK 30 UU	30	45	64	0.47
LMK 35 UU	35	52	70	0.65
LMK 40 UU	40	60	80	1.06
LMK 50 UU	50	80	100	2.2
LMK 60 UU	60	90	110	3
LMK 80 UU	80	120	140	5.3
